Printed circuit board panels of different materials as well as varying material thicknesses are to be cut with the same cutting quality.

Hölzer Depanneling Systems

Separation of PCB´s - neatly and efficiently integrated

Systemtechnik Hölzer GmbH is a family business in the third generation. Even before the end of the war, the grandfather of Silvia Hölzer-Becker, Ing. Heinz Schmoll, founded a small business in his parents’ garage. He manufactured special machines, punching and cutting tools, specialized further in printed circuit board processing machines and applied for patents for various inventions.



The company developed steadily and grew to 200 employees. In 1980 Heinz Schmoll handed over the company to his daughter and son-in-law Wolfgang Hölzer. In 1988 Systemtechnik Hölzer was spun off as a subsidiary. Ms Silvia Hölzer-Becker has been managing director since 1999. The main areas are depaneling, air bearing production, special machine construction and laser production.

Depaneling

Printed circuit board panels of different materials as well as varying material thicknesses are to be cut with the same cutting quality.



Plastics, FR2/ FR4, Ceramics, Aluminium, Copper, Flex foil.



In addition, the manufacturing process should be as stress-free and dust-free as possible in order not to damage the sensitive components.

Hölzer Depanneling Systems

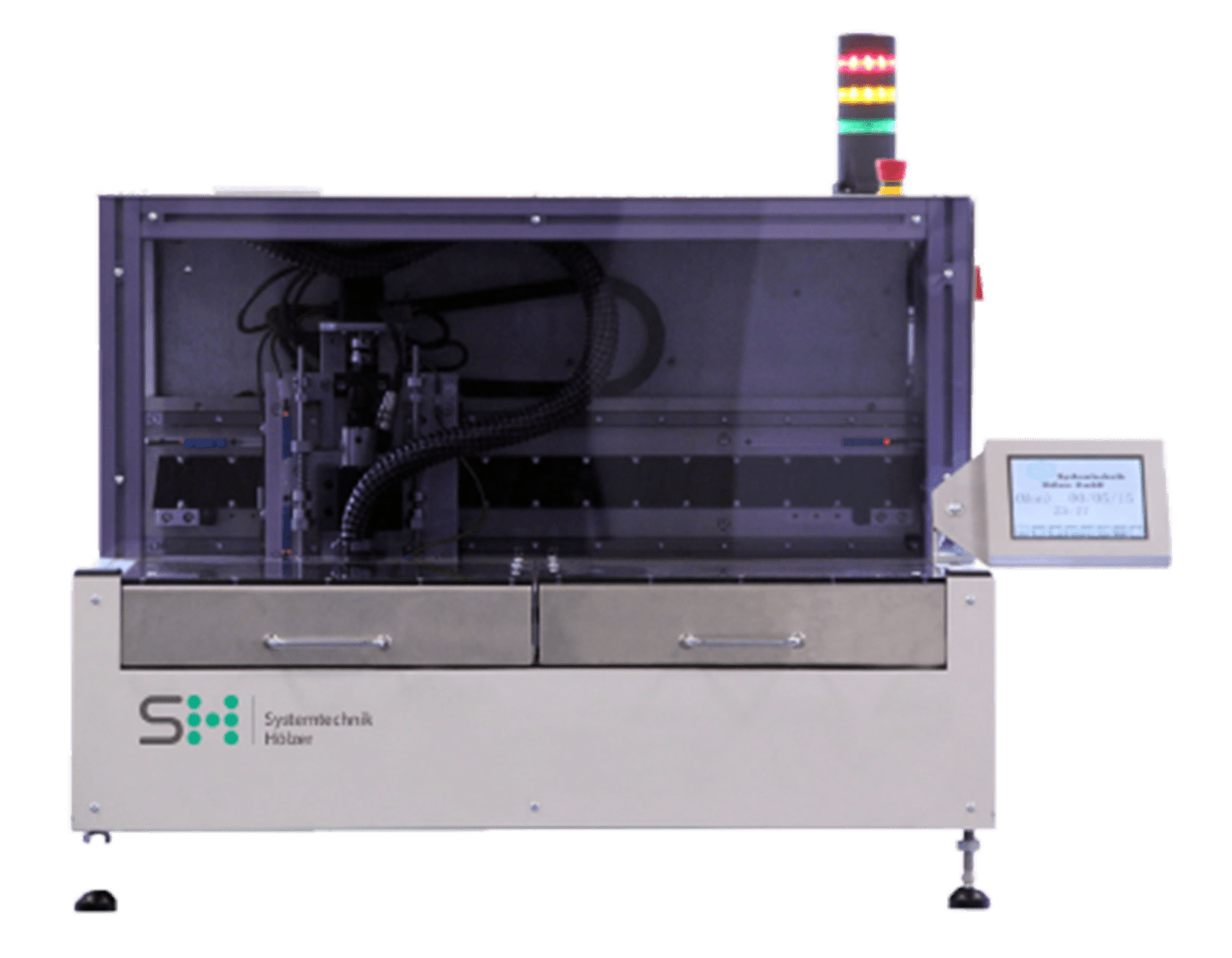

LOW Mini

The compact table version LOW MINI was specially developed for depaneling for series with a small format, for small series with a large format and cost-conscious production. Printed circuit board materials, with a residual web connection up to a maximum size of 320 mm x 580 mm, can be separated quickly and economically. The cutting process is servo-controlled in all axes, with the milling drive from above. The change of work area from small (320x280mm) to large (320x580mm) format is the highlight of the machine due to the simple and uncomplicated handling.



Product Data

  • Short cycle times thanks to Shuttle operation
  • Linear Motor Technology
  • Flexible handling – easy operation
  • Optimal Price-Performance Ratio
Hölzer Depanneling Systems

LOW Standard

The highly dynamic depaneling machine LOW 4233 is particularly suitable for medium to high product volumes and meets growing requirements in the production process. Printed circuit boards use different materials such as using low-dust and low-stress sawing and milling techniques with the highest amount of product flexibility, precision and throughput separation. Highly dynamic linear motor axes, tools and grippers meet the highest quality standards and guarantee the depaneling machine a long service life and reliability.



Product Data

  • Rigid welded steel frame
  • Highly dynamic linear motor axis
  • Quick product change possible
  • Flexible PCB mounting systems
  • Cutting process with discs and / or shank tools
  • Separates any PCB material
  • Laser axis measurement
  • Individual special sizes possible
Hölzer Depanneling Systems

LOW XL

The highly dynamic depaneling machine LOW 4233 XL is especially suitable for medium to high product volumes and meets growing requirements in the production process. Printed circuit board benefits from a wide variety of materials which are made using low-dust and low-stress sawing and milling techniques with the highest product flexibility, precision and throughput separation. Highly dynamic linear motor axes, tools and grippers meet the highest quality standards and guarantee the depaneling machine a long service life and reliability.



Product Data

  • Large work surface: 700 x 400 mm
  • Rigid welded steel frame
  • Highly dynamic linear motor axis
  • Quick product change possible
  • Flexible PCB mounting systems
  • Cutting process with discs and / or shank tools
  • Separates any PCB material
  • Laser axis measurement
  • Individual special sizes possible
Hölzer Depanneling Systems

LOW Laser

The highly dynamic LOW laser depaneling machine is especially suitable for medium to high product volumes and meets growing requirements in the production process. Printed circuit boards of various materials are made using low-dust, low-stress laser sawing and milling techniques separated with maximum product flexibility, precision and throughput. Highly dynamic linear motor axes, tools and grippers meet the highest quality standards and guarantee the depaneling machine a long service life and reliability.



Product data

  • Large work surface
  • Rigid welded steel frame
  • Highly dynamic linear motor axis
  • Quick product change possible
  • Flexible PCB mounting systems
  • Cutting processes with discs, shaft tools and lasers
  • Separates any PCB material
  • Laser axis measurement
  • Individual special sizes possible
Hölzer Depanneling Systems

INT Inline

The INT 4646 line machine offers powerful and economical depaneling of printed circuit boards, ideal for high volumes and product variance. With a stand space of (W / D / H) 1,000 mm x 1,850 mm x 1,750 mm, this inline depanelling machine is one of the most compact models that guarantee fast, low-stress and low-dust depanelling of all types of PCBs.



roduct Data

  • Stable welded steel frame
  • Precise linear motor technology
  • Integrated infeed conveyor
  • Flexible gripper concepts
  • LP multiple up feed
  • Laser axis measurement
  • Optional: Tray Loader TL-6040
  • Customized special solutions
  • Low maintenance
